Mindful Stim Mobile systems provide tDCS, tACS, tRNS,sham, and custom waveforms that operates as a stand alone neuro stimulation system or can be completely integrated with Mindful EEG systems. Ideal for closed loop stimulation and custom patterns, Mindful Stim Mobile Systems provides maximum research flexibility in a battery operated package.
Both systems use the Rally software provides a user friendly interface, which can flexibly adjust the stimulation position and parameters, and intuitively record EEG signals and tES stimulation.
Features

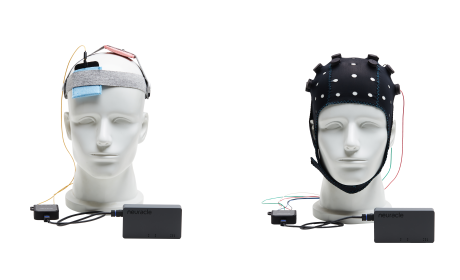

Portable Design
• Lightweight, compact and wearable design
• Hot-swappable batteries for long-term use
• More secure and easy to use

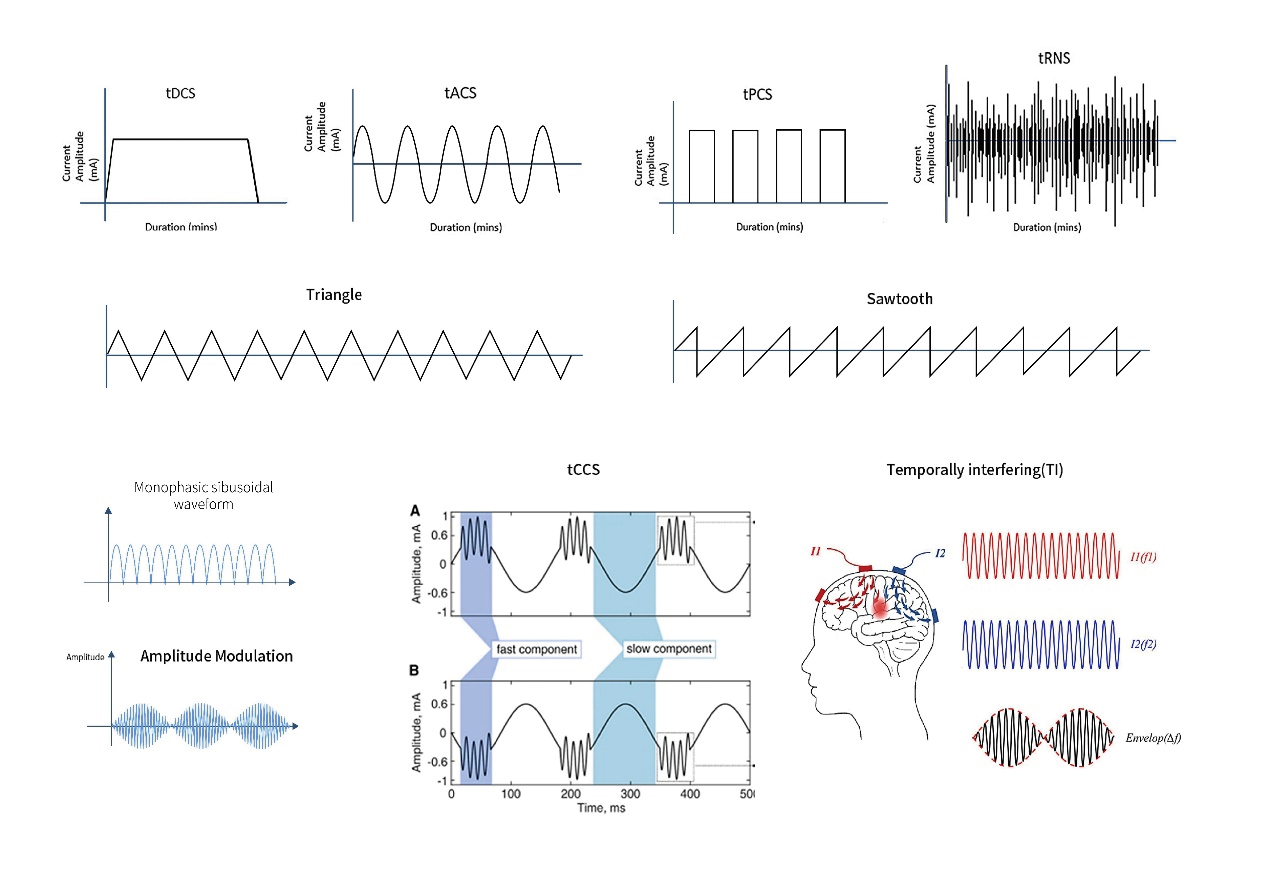

Versatile Stimulus Protocols
• Both sponge and high-density (HD) electrodes
• Various stimulation modes (tDCS, tACS, tRNS etc.)
• Embedded sham and double-blind stimulation
Accurate Waveform Output
• Advanced stimulation precision (4000sps)
• Avoid distortion of high frequency waveform and optimize stimulation validity
• More accurate impedance monitoring, closely adjust the parameters to maintain the preset current constant
Expandable Capabilities
• Perfectly compatible with Mindful EEG system, with wireless synchronization accuracy less than 1ms;
• Compatible with other brands of EEG, eye-tracking, biosensors, etc. through external Trigger modular
• Open API for closed-loop stimulation
Specifications
|
Channels |
1-8 |
|
Stimluation modes |
tDCS/tACS/tRNS/tPCS/Sham |
|
Wave shapes |
Square/Sine/Noise |
|
Max total injected current |
4mA |
|
Maximum current per channel |
±2mA |
|
Maximum voltage |
±16V |
|
Current accuracy |
1% |
|
Current resolution |
1uA |
|
Frequency range |
0.01-200Hz, 0.01Hz step (tACS) 1-700Hz, 0.1Hz step (tRNS) 1-200Hz, 0.5Hz step(tPCS) |
|
Pulse width |
0.25~1000ms, 0.25ms step(tPCS) |
|
Phase range |
0-360° |
|
Impedance monitoring |
Continuous |
|
Dimensions |
107×60×22mm |
|
Weight |
Approx. 120g(without battery) |
|
Power Supply |
Rechargeable lithium battery, hot swappable |
|
Trigger IN/OUT |
3.3V TTL |
Download
Mindful Stim
Rally - Stimulation
Dedicated software for stimulation, Rally provides an easy to use interface for electrical stimulation, including standard simple waveforms and complex custom waveforms. Fully integrated with collect software for simultaneous EEG and tES, Rally supports closed loop stimulation and feedback.
|
FEATURES |
|
• Up to 32 channels of individual stimulation |
Mindful Stim Mobile
Transcranial Electrical Stimulation System
